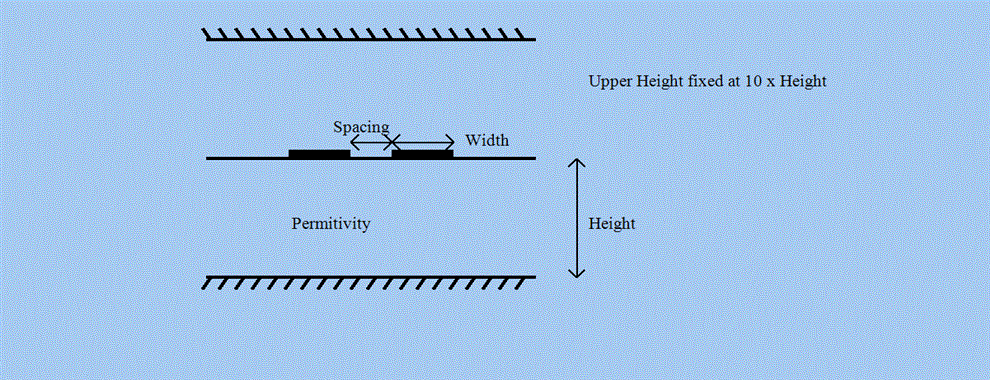

Microstrip Coupler

Frequency (1Hz.. 100Ghz)

Line width mm (1000.. 0.0001)

Line spacing mm (100.. 0.00001)

Dielectric 1 height mm (1000.. 0.001)

Line thickness mm (1.. 0.00001)

Effective Dielectric 1 (100.. 0.9)

Possible Material Values Copper Silver Gold Aluminium Graphene Brass

Reference termination (1..350 Ohms

A reference load is required for calculation of the Quarter wave coupler characteristics (defaults to 50 Ohms).

If you are looking for the 3.02db holy grail coupler, then try Er = 9.6, height = 2mm, spacing 0.0009mm, width = 0.628mm and ABOVE ALL thickness = 0000mm. You will not get a microstrip 3db coupler using this separation with any practical line thickness. Well a graphene film is a possiblity? and don't forget to align the graphene planes correctly.

However if you are looking for an edge coupler on a real substrate, then choose a substrate from the catalog.

Calculate Clear Catalog
