SlabLine Coupler

A hign power version of stripline using rods to avoid corona on sharp edges. Pure TEM mode in homogeneous dielectric, often air or polystyrene foam. One problem with a dielectric is getting rid of the heat dissapation from the rods. Still good for TKW directional couplers.

StripLine Coupler Diagram

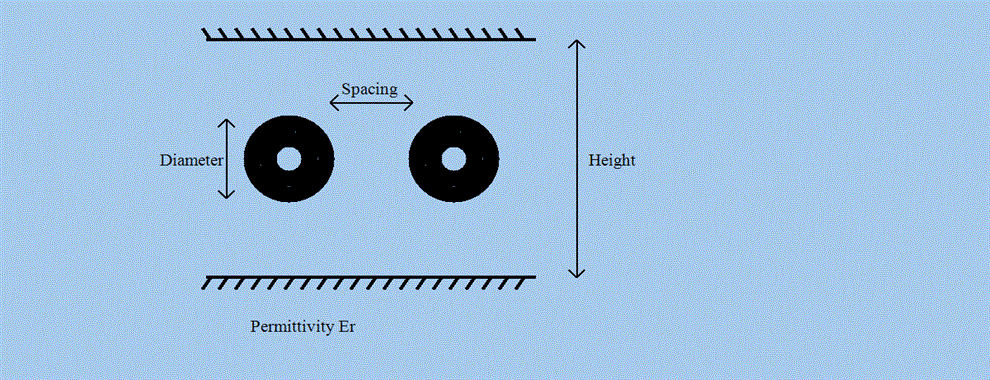

Circular Coupled SlabLine between ground planes

A reference load is required for calculation of the Quarter wave coupler characteristics (defaults to 50 Ohms).

For your 3db coupler you will need large diameter bars and possible Kapton tape.
